Toyota Corolla Shaking When Idle? (Fix Idle Vibration)
Toyota Corolla shaking when idle usually means weak engine mounts, a misfire, or a dirty throttle body. If your RPM stays steady but the car shakes, check the mounts. If RPM fluctuates, inspect spark plugs, ignition coils, and fuel delivery system parts.
This guide explains causes, fixes, and diagnostics from older 2003 models to the latest 2026 versions, using real-world examples and expert insights.
Is It Normal for a Toyota Corolla to Vibrate at Idle?
A mild vibration at 650–750 RPM is normal for 4-cylinder engines. You may feel a gentle hum in the steering wheel when the car is stopped.
It is not normal if:
- The steering wheel shakes visibly
- The seat vibrates hard
- RPM drops below 600
- Car jerks or stumbles
Newer 2020 to 2026 direct-injection models feel slightly rougher than older port-injected engines, but strong shaking always signals a problem.
Why Does My Corolla Shake Only in Drive but Not in Park?
Toyota Corolla Shaking When Idle? Most commonly, engine mounts are the culprit. In Drive, the transmission load amplifies vibration, which weak mounts cannot absorb.
Real-world example: 2014 to 2018 models often feel fine in Neutral but shake at stoplights. Replacing the front mount usually resolves it instantly.

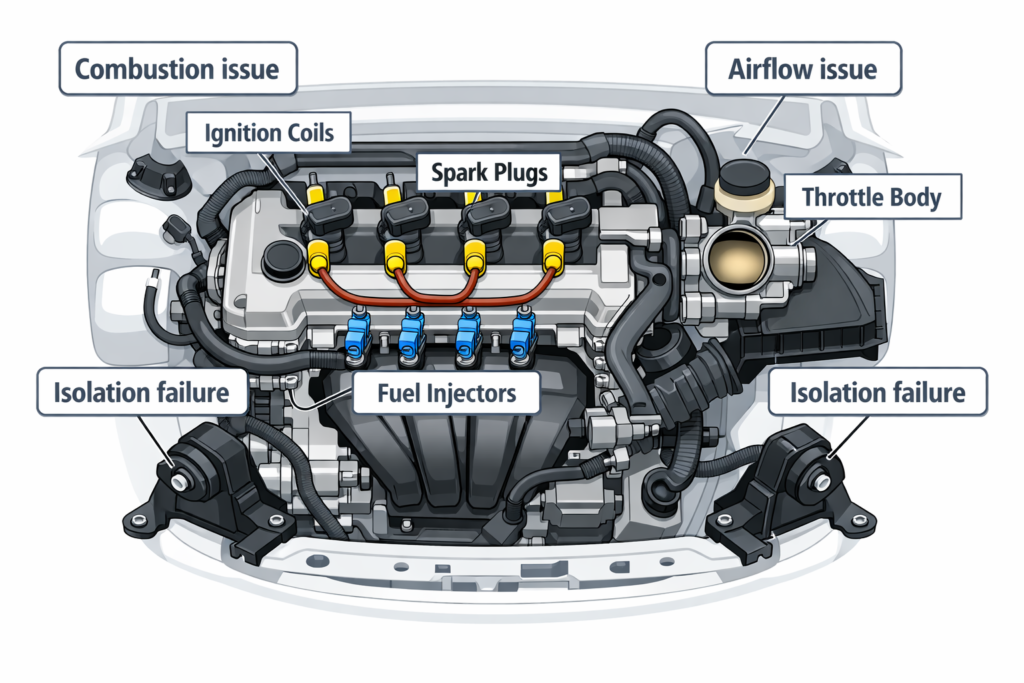

What Causes Rough Idle in a Toyota Corolla?
Rough idle can result from several factors across 2003 to 2026 models:
- Worn spark plugs (after 60k to 100k miles)
- Failing ignition coil
- Dirty throttle body
- Vacuum leak
- Weak fuel injector
- Bad engine mounts
If RPM fluctuates, check for combustion issues. If RPM is stable but shaking occurs, the mounts are usually at fault.
Read Guide: How Often To Change the Engine Air Filter Toyota Camry?
Can Bad Engine Mounts Cause Idle Vibration?
Yes. Modern Corollas use hydraulic mounts, which often fail internally before cracking.
Typical signs:
- Vibration worsens in Drive
- Thud or movement when shifting gears
- The engine moves slightly when revved
Most mounts weaken between 80k and 120k miles, a common issue on 2009 to 2019 models.
Why Does My Corolla Shake More With the AC On?
AC adds load to the engine, causing a small dip in RPM. If the mounts are weak, that vibration feels stronger.
- Normal: brief, light vibration
- Not normal: constant shaking only with AC on
What Is the Normal Idle RPM for a Toyota Corolla?
Different models and engines idle differently.
Warm idle RPM varies by engine and gear position:
- 1ZZ-FE (2003–2008)
700–750 RPM in Drive (650–700 in Park) - 2ZR-FE (2009–2019)
700–750 RPM in Drive once fully warm - M20A-FKS (2020–2026)
600–700 RPM warm, but most stabilise near 650–700 in Drive
Cold start: 1200–1500 RPM is normal.
Is It a Misfire or Just a Mount Problem?
- RPM fluctuates → likely misfire
- Check engine light → scan for P0300 code
- RPM steady, but vibration strong → mount issue
Misfire feels like stumbling; mount vibration feels like body shaking.
Can a CVT Transmission Cause Vibration at a Stop?
Rare but possible exceptions on high-mileage 2ZR-FE + CVT models include:
- Torque converter clutch shudder
- Degraded CVT fluid
- Internal damper wear
If vibration occurs only in the drive and feels like a brief shudder (not steady shaking), inspect the transmission fluid condition before replacing the mounts.
If vibration disappears in Neutral, the CVT is fine; mounts are usually the issue.

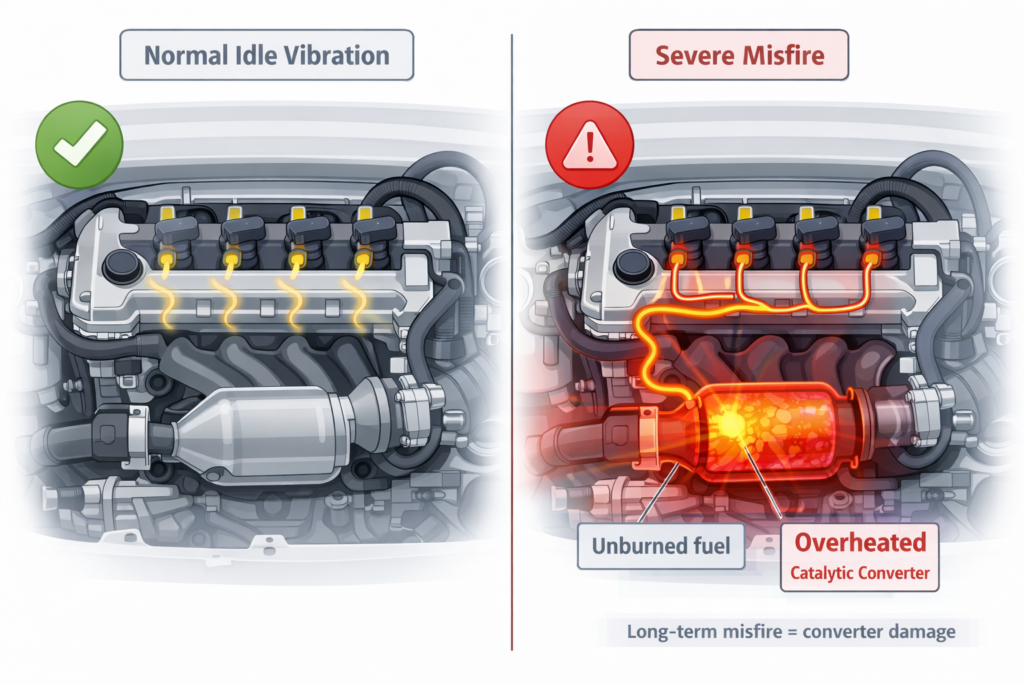

Is It Safe to Drive a Corolla That Shakes at Idle?
| Cause | Safe to Drive? | Risk Level |
| Bad mount | Yes, short-term | Low |
| Vacuum leak | Short-term | Medium |
| Dirty throttle body | Yes | Low |
Misfire → Not safe to ignore.
Prolonged misfire allows unburned fuel to enter the catalytic converter, causing overheating and potential converter failure. Oxygen sensors may also be damaged.
Ignoring a misfire can damage the catalytic converter.
How Much Does It Cost to Fix Corolla Idle Vibration?
Costs vary by year and part quality. Hybrid repairs may be slightly higher.
| Repair | Average Cost (USD) |
| Engine mount replacement | $250 to $600 |
| Spark plug replacement | $120 to $250 |
| Ignition coil | $150 to $350 |
| Throttle body cleaning | $80 to $180 |
| Fuel injector service | $150 to $400 |
Costs vary by region and labour rates.
OEM hydraulic mounts cost more but last longer than aftermarket rubber mounts.
Hybrid models may require slightly higher labour due to tighter engine bay packaging.
For detailed average costs by model year, see RepairPal’s engine mount replacement estimates.
Does Idle Vibration Differ by Corolla Engine Type?
Older port-injection engines idle more smoothly.
The 2020+ M20A-FKS engine uses:
- Lean idle strategy
- Higher compression (Dynamic Force architecture)
- Combined port + direct injection
These characteristics make idle feel slightly sharper than older port-injection engines. However, strong shaking is never normal.
Hybrids cycle the engine on/off, causing brief vibrations that are usually normal.
Do 2003 to 2008 Corollas Shake More at Idle?
Smooth unless mounts wear or spark plugs are overdue. Shaking above 120k miles → check mounts first.
Do Models from 2009 to 2019 Have Engine Mount Issues?
Yes, front hydraulic mounts often weaken around 90k–120k miles—most common idle vibration complaint.
Do 2020+ Direct Injection Corollas Idle Rougher?
Slightly rawer at idle due to lean M20A-FKS design. Strong shaking still indicates a problem.
Do Hybrid Corollas Feel Different at Idle?
Engine auto on/off causes minor vibration. Normal unless shaking is violent.

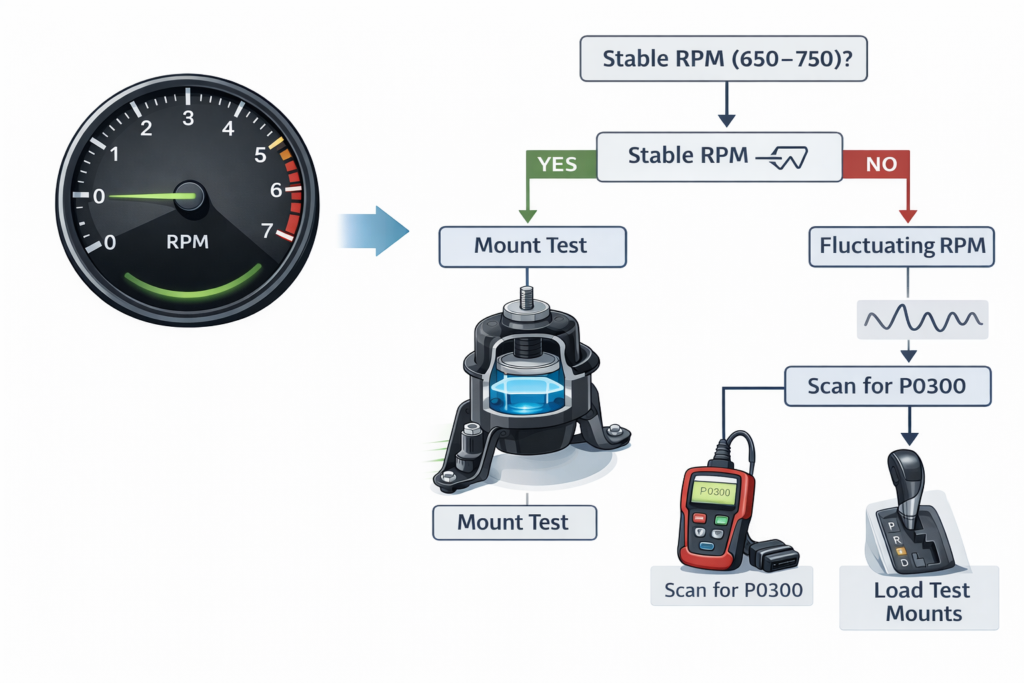

How Can I Diagnose a Toyota Corolla Idle Vibration Step by Step?
- Check warm idle RPM
- Turn the AC on/off
- Shift Park → Drive
- Scan for trouble codes
- Inspect mounts visually
Stable RPM + increased vibration in Drive → likely mounts.
Mount Load Test (Advanced DIY Check)
With the parking brake engaged, shift from Park to Drive while holding the brake.
Observe engine movement from the passenger side.
Excessive forward lift indicates a weakened front hydraulic mount.
Why Does My Corolla Shake Even When RPM Is Stable?
Mechanical isolation (mounts) usually fails, not the engine. Mid-mileage Corollas often show stable RPM but strong body vibration.
Toyota Corolla Shaking at a Red Light?
If vibration occurs only while stopped in Drive at traffic lights, engine mounts are the most common cause. Transmission load amplifies weak mount vibration.
Corolla Shaking When Braking to a Stop?
If shaking occurs while slowing down, not just idling, inspect:
- Brake rotors (warping)
- Engine mounts
- CVT engagement behaviour
If shaking continues after the vehicle is fully stopped, mounts are more likely.
Corolla Shaking With No Check Engine Light
No warning light usually rules out a major misfire. Stable RPM, no codes, and strong vibration typically indicate mount deterioration.
Also Read: Why Is My Tire Pressure Light Blinking Toyota?
Idle Vibration After Motor Mount Replacement
If vibration remains after replacing one mount:
- Inspect remaining mounts
- Verify mount alignment torque specs
- Check for a collapsed transmission mount
Many Corollas require replacing the front mount first, but side mounts may also be weak.
FAQs:
Is it normal for a Toyota Corolla to shake slightly at idle?
Yes, light vibration at 650 to 750 RPM is normal for 4-cylinder engines in Drive.
Can bad engine mounts cause my Corolla to vibrate at a stop?
Yes, weak or collapsed mounts are the most common cause.
Does a misfire make the Corolla shake more aggressively?
Yes, misfire causes uneven combustion and noticeable shaking.
What is the normal idle RPM for a Toyota Corolla?
Gasoline engines: 650–750 RPM; hybrids vary due to engine cycling.
Is it safe to ignore Corolla’s idle vibration?
No, strong shaking can damage the catalytic converter due to a misfire.
Conclusion:
A slight Corolla idle vibration is usually harmless, but strong or worsening shaking should never be ignored. Engine mounts, ignition parts, and airflow issues are the most common causes. Early diagnosis prevents costly repairs. A smooth idle ensures your engine is healthy and safe.
